Wave Mini Salty Kit


Wave Mini Salty Kit

Battery Specification:

Item     Specification
Parameters     Wave mini tank     Diameter     16.5 mm
Capacity     1.8-2.0 ml
Resistance     Ceramic 1.2 ohm
Thread     510
Best vape Wattage     8w-12w
Wave mini        Battery     Size     16.5 x 88 mm
Capacity     1000 mAh
Voltage Range     3.4V - 4.4V
Resistance Range     1.0 ohm - 3.0 ohm
Charging port     Micro USB
Charging current     5v/500mA

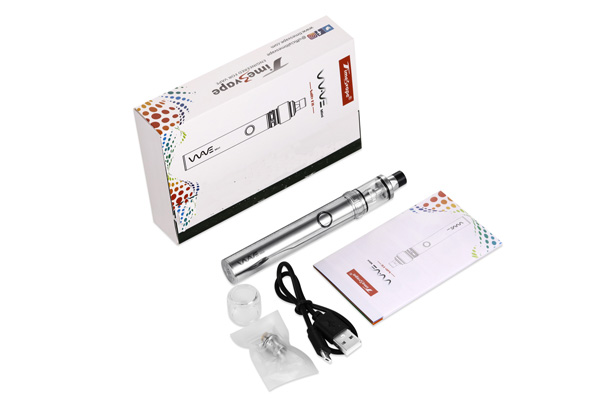

Package:
1x Tank
1x Battery
1x Replacement Coil
1x USB charger
1x User manual

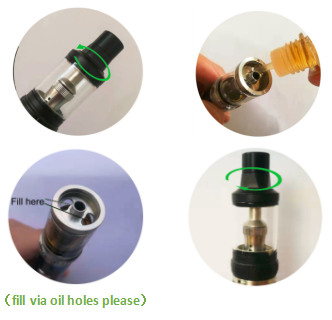

How to fill liquid:
1. Twist the top cap to open in counterclockwise direction.
2. Fill via one of oil holes. (please do not fill to center hole, please do not over fill.)
3. Screw in the top cap. (please do not screw in over-tighten.)
4. Please wait for five minutes to wetting coil head before vaping.

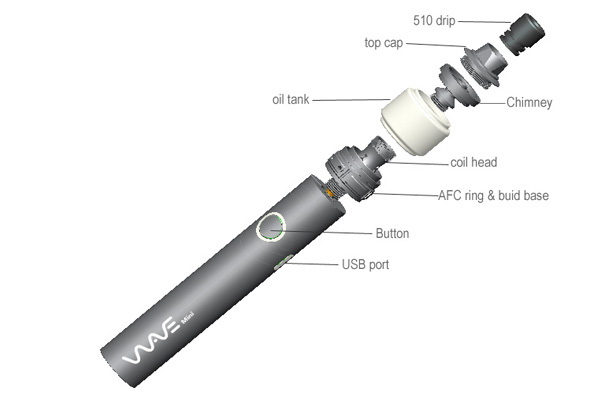

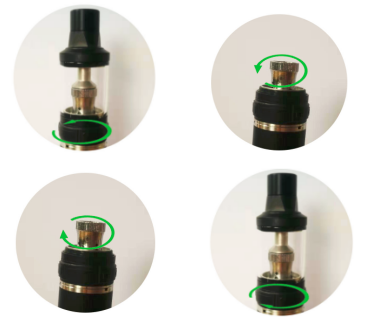

How to change coil:
1. Please make sure no liquid on tank.
2. Hold and then Screw out the bottom base of tank.
3. Screw out the coil head from base.
4. Screw in the new coil head.
5. Screw in the bottom base with top chimney. (please do not over-tighten.)

Charging:
1. Charging with certified wall charger and USB cable with Micro USB port.
2. LED will turn on blue while charging, and LED turn off while full charged.
3. Please do not leave device charging unattended.

Power on/off:
1. 5 X clicks on/0ff
Click the power button 5 times to power on, then press the power button to enjoy vape.

Safety protections:
1. short circuit protection
When the short-circuit is detected, the mod will protect the battery by preventing circuit returning.
2. Low resistance protection
The device will be protected against while the resistance too low.
3. over discharge
The device will be protected against battery over discharge and damage.
4. over charge
The device will be protected against battery overcharge and damage.
5. 5 minutes cut-off 5 minutes no use, it will auto cut - off.

Notice:
1. Keep liquid at least 1/3 of tank for best vape.
2. Please replace coil head once any burn taste.
3. No vape once tank is empty of liquid.
4. Wave mini battery Only use with authentic wave mini tank and coil head.
